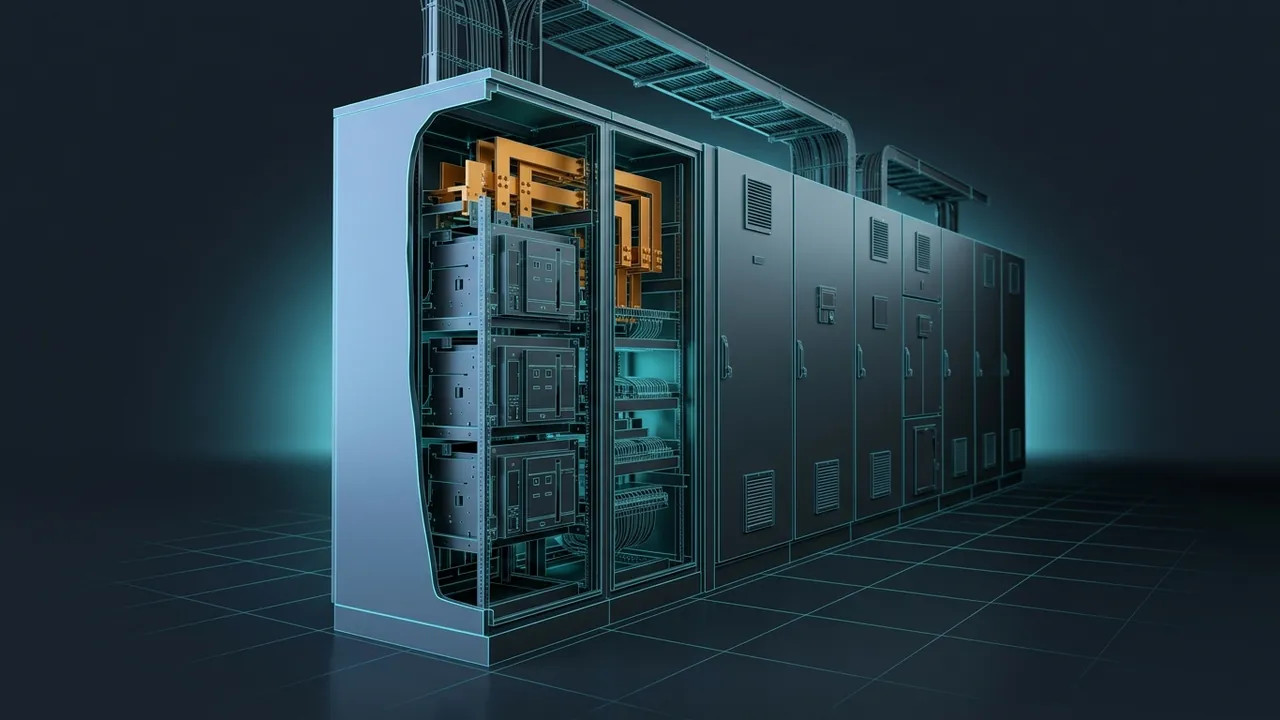

Power Quality for Data Centers – Frequency, Voltage and Harmonics
Power can be "on" and still be bad. The lights stay lit, the meter keeps spinning, and yet servers reboot, UPS systems click over to battery, and a chiller drive faults out for no obvious reason. The culprit is usually not a full outage but the shape and steadiness of the power itself. What does data center power quality really mean, and how do you keep frequency, voltage and harmonics where your equipment needs them?
Data center power quality is how closely the electricity reaching your equipment matches an ideal supply: steady voltage, steady frequency and a clean sine wave, with no interruptions. The main problems are voltage sags, swells and transients, frequency deviations, and harmonic distortion caused by electronic loads. IT equipment can ride through brief disturbances, and the ITIC curve describes roughly how much.
Facilities protect power quality with double-conversion uninterruptible power supplies (UPS), surge protection, harmonic filtering, good grounding and continuous monitoring. On-site generators make the job harder, because they are much weaker sources than the utility grid.
What Is Data Center Power Quality?
Think of power quality as four questions about the electricity at any point in the building:
- Is the voltage the right size, and does it stay steady?
- Is the frequency right, 60 hertz (Hz) in North America?
- Is the waveform a smooth sine wave, or is it distorted?
- Is the power continuous, without dropouts?
A utility grid usually does well on all four, because it is enormous and stiff. Thousands of generators hold frequency, and strong transformers and lines resist voltage changes. Inside a data center, though, power passes through many layers of equipment, and each layer can either clean the power up or make it worse.
Why Does Frequency Matter in a Data Center?
On the grid, frequency barely moves. On an on-site generator, it moves every time the load changes, because the engine slows briefly before the governor catches up.
IT equipment is fairly forgiving of frequency, since server power supplies convert alternating current to direct current anyway. The bigger concerns are elsewhere:
- UPS bypass: a double-conversion UPS can only transfer to its bypass path if the input frequency is close to its own output. If generator frequency wanders, the UPS may refuse to transfer, or stay on battery longer than planned.
- Motors and drives: chillers, pumps and fans change speed with frequency, and variable-frequency drives can trip on wide swings.
- Synchronizing: generators and transfer switches need matched frequency to parallel or transfer smoothly.
Stable frequency on generator power comes down to good governors, enough units online, batteries for fast response and keeping load steps small.
What Voltage Problems Hurt Data Centers?
Voltage problems are the most common power quality events. The main types:
| Event | What it is | Common causes |
|---|---|---|
| Sag (dip) | Short drop in voltage | Faults on nearby lines, large motor starts |
| Swell | Short rise in voltage | Large loads switching off, faults on other phases |
| Transient | Very fast spike | Lightning, capacitor switching, breaker operations |
| Interruption | Voltage near zero | Utility outages, breaker trips, transfer gaps |
| Steady over or under voltage | Voltage off-target for long periods | Wrong transformer taps, overloaded feeders |
How much can equipment take? The Information Technology Industry Council (ITIC) curve, a successor to the older CBEMA curve, is the common reference.
As Power Monitors explains in its overview of the CBEMA and ITIC curves, IT equipment designed to the ITIC envelope should ride through a complete loss of voltage for about one cycle, a sag to 70% of nominal for half a second, a sag to 80% for up to 10 seconds, and a swell to 120% for half a second. Outside that envelope, equipment may drop out or be damaged.
Worked example: on a 60 Hz system, one cycle lasts 1 ÷ 60 ≈ 0.0167 seconds, about 17 milliseconds. That is the whole ride-through for a complete dropout. It is why a transfer switch that takes several seconds to move from utility to generator always needs a UPS in front of the IT load.
What Are Harmonics, and Where Do They Come From?
Harmonics are currents and voltages at whole-number multiples of the base frequency, such as 180 Hz (third harmonic) or 300 Hz (fifth harmonic) on a 60 Hz system. They distort the smooth sine wave into a lumpy shape.
They come from nonlinear loads, equipment that draws current in pulses instead of smoothly. Data centers are full of them:
- Server and storage power supplies
- UPS rectifiers
- Variable-frequency drives on chillers, pumps and fans
- LED lighting drivers
Harmonic currents heat transformers, cables and neutral conductors beyond what their nominal load would suggest. Triplen harmonics, the third, ninth and so on, add up in the neutral of a three-phase system instead of cancelling. Harmonics also distort the voltage, which can upset other equipment. IEEE 519, the Institute of Electrical and Electronics Engineers standard for harmonic control, sets limits on voltage and current distortion at the point where a facility connects to the utility. The IEEE harmonics working group maintains it.
Why Are Harmonics Worse on Generator Power?
Because a generator is a much "softer" source than the grid. Voltage distortion is roughly the harmonic current multiplied by the impedance of the source. A large utility transformer has low impedance; a generator's internal impedance is considerably higher.
Some illustrative numbers make the point. Suppose the same harmonic current flows on two sources: a utility transformer with an effective impedance of about 6%, and a generator whose effective impedance at those frequencies is about 15%. The voltage distortion on the generator is roughly 15 ÷ 6 = 2.5 times higher. A system that measures 3% voltage distortion on utility power could see around 7.5% on generators alone.
That is why sites with large nonlinear loads often oversize alternators, specify generators with low reactance, or add harmonic filtering. It is also why power quality should be measured on generator power during commissioning, not only on utility power.
What About Power Factor?
Power factor describes how effectively current does useful work. Old motor-heavy loads drew lagging current, which generators handle well. Modern IT power supplies with correction circuits can present a leading power factor, especially at light load, because of their input capacitors.
Generators are designed for lagging loads. A strongly leading load can push a generator's voltage regulator to its limit and, in severe cases, cause voltage instability or a trip. This is one reason UPS and generator vendors should review the load together, particularly at partial load when a new data hall is only lightly populated.
How Do Data Centers Protect Power Quality?
With layers, from the service entrance to the rack:
- Double-conversion UPS: converts incoming power to direct current and back, isolating IT loads from most sags, swells and frequency changes
- Surge protective devices at service entrances and distribution panels to clip transients
- Active harmonic filters or low-harmonic drives and rectifiers to cut distortion at the source

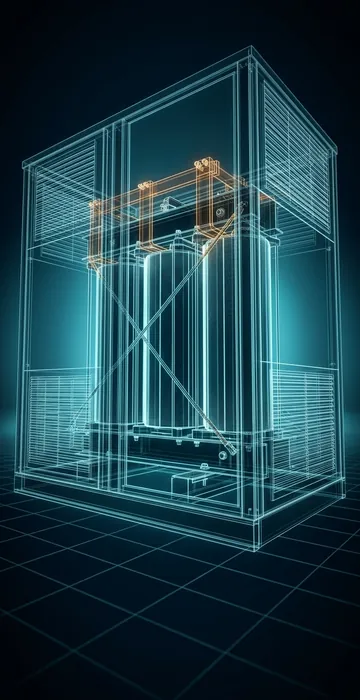

- Transformers rated for harmonic loads and oversized neutrals where triplen harmonics are high
- Solid grounding and bonding, which underpins everything else
- Thoughtful distribution design, keeping sensitive loads on separate paths from large motor loads
Distribution layout matters more than many people realize. Where transformers sit, how feeders are arranged and how large motors are separated from IT loads all shape power quality. Our guide to medium voltage distribution covers that gear and layout.
How Do You Monitor Power Quality?
With permanent power quality meters at key points: the service entrance, generator buses, UPS inputs and outputs, and major distribution boards. These meters capture waveforms, sags, swells, transients and harmonic levels, and time-stamp every event.
Good monitoring turns mysteries into answers. When a UPS transfers to battery at 3 a.m., the meter shows whether it was a utility sag, a generator issue or something inside the building. Review the data regularly, not only after something breaks. Trends in harmonic distortion or voltage imbalance often warn of trouble months before a failure.
Clean Power Is a Design Choice
Data center power quality comes down to steady voltage, steady frequency and a clean waveform. Sags, swells, transients and harmonics are the usual troublemakers, and on-site generators amplify them because they are softer sources than the grid. The ITIC curve sets the rough limits for IT gear, and IEEE 519 sets harmonic limits at the utility connection.
On your next design or upgrade, write power quality targets into the specification, test them on both utility and generator power during commissioning, and leave permanent meters in place. Clean power rarely happens by accident.
