What Is a Gas Gathering System? – From Wellhead to Pipeline
Gas does not jump from a well straight into the big interstate pipelines you see on maps. In between sits a web of smaller pipe, compressors and plants that most people never think about unless they work on it. Ranchers know it as the line crossing the back pasture. Pumpers know it as the reason a well gets shut in when a compressor goes down. If you want to put power generation near a gas field, that web is where your fuel actually comes from. So what is a gas gathering system, and how does gas get from the wellhead to the pipeline?
A gas gathering system is the network of small-diameter, mostly low-pressure pipelines, compressors and treating equipment that collects natural gas from many individual wells and moves it to a processing plant or a large transmission pipeline. It starts with flowlines at each well site, feeds into larger gathering lines, gets boosted by field compressor stations and usually ends at a gas processing plant. There, water, impurities and heavier liquids are removed so the gas meets pipeline quality. Only then does it enter interstate or intrastate transmission lines for the long haul to cities and power plants.
How Does Gas Move Through a Gathering System?
It moves in stages, from many small streams to a few big ones. The U.S. Energy Information Administration (EIA) lays out the full path in its explainer on delivery and storage of natural gas. In the field, the journey usually looks like this:
- Wellhead and flowline. Gas, oil and water come up the well together and travel a short flowline to equipment on the pad.
- Separation. A separator splits gas from liquids. Oil and water go to tanks, and the gas heads for the sales line.
- Metering. A meter at the pad measures how much gas leaves, which is what the operator and royalty owners get paid on.
- Gathering lines. Lines from many pads tie into larger trunk lines, a bit like creeks feeding a river.
- Field compression. Compressor stations boost pressure so gas can keep moving and reach the plant.
- Treating and processing. Gas is dehydrated, sweetened if it contains hydrogen sulfide (H2S) and stripped of natural gas liquids (NGLs) at a processing plant.
- Delivery. The finished "residue gas" enters a transmission pipeline.
Some dry gas fields skip the processing plant and go almost straight to transmission after dehydration. Oil-heavy areas, where the gas comes up rich with liquids, nearly always need processing.
What Equipment Makes Up a Gathering System?
The pipe gets the attention, but the equipment along it does the hard work. Here are the main pieces you will find on a typical gas gathering system:
| Equipment | What it does |
|---|---|
| Separators and heater treaters | Split gas, oil and water at the well pad |
| Meter runs | Measure gas volume for sales and royalties |
| Gathering pipelines | Carry gas from pads to stations and plants |
| Compressor stations | Raise pressure so gas keeps flowing |

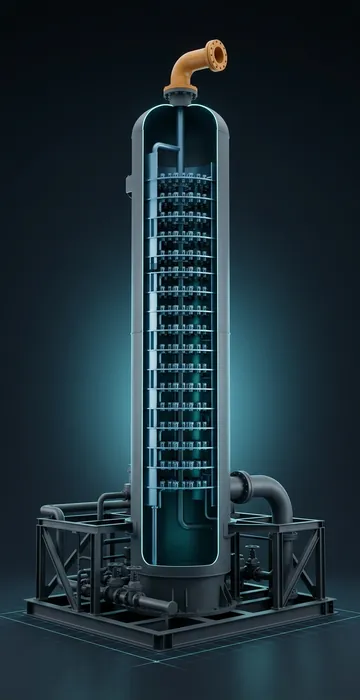

| Dehydrators | Remove water vapor, often with glycol units |
| Pig launchers and receivers | Let crews run cleaning tools through the line |
| Drips and slug catchers | Catch liquids that drop out in the pipe |
Anyone who has worked a gathering system knows liquids are the constant headache. Rich gas cools as it travels, and water and heavier hydrocarbons condense in low spots. Left alone, that liquid slows flow and can freeze in winter. Crews pig the lines and blow down drips to keep things moving.
How Big Are Gathering Lines?
Smaller than transmission lines, but with a wide range. A flowline from one well might be only a couple of inches across. Trunk lines that collect gas from dozens of pads can run a foot or two in diameter on big systems. Operating pressures also vary, from fairly low pressure near older wells to several hundred psi or more on high-pressure systems serving newer horizontal wells.
The EIA describes gathering lines in general as small-diameter, low-pressure pipe, and that is true of most of the mileage. Just remember that "low pressure" in pipeline terms is still far more than any homeowner's gas line, and every gathering line deserves the same respect crews give it.
Why Is Compression So Important?
Gas only flows from high pressure to low pressure. A new well may have plenty of pressure on its own, but wells decline, sometimes quickly, and pipe friction eats pressure over every mile. Field compressors make up the difference.
Compression also sets how much a well can produce. Lowering the pressure a well has to push against, called line pressure, lets more gas flow out of the rock. That is why operators sometimes add wellhead compression to older wells. It is also why a compressor station going down can back pressure up the whole system and force wells to shut in or flare until it is back online.
What Happens at the Processing Plant?
The processing plant turns field gas into pipeline gas. Raw gas often carries water, carbon dioxide, H2S, nitrogen and valuable liquids like ethane, propane and butane. The plant removes or recovers those so the remaining gas, mostly methane, meets the heat content and purity rules of the transmission pipeline.
Processing capacity is a real constraint. An EIA analysis of U.S. gas processing plant capacity counted 510 plants in the Lower 48 at the end of 2017, with 80.8 billion cubic feet per day (Bcf/d) of capacity and average throughput of 53.3 Bcf/d, about 66% utilization. Averages hide local crunches, though. When drilling outruns plant and pipe capacity in one area, gas has nowhere to go.
Who Owns and Runs Gathering Systems?
It varies. Some producers build and run their own lines. More often, midstream companies own the gathering and processing, and producers sign gathering agreements with them. These usually set a fee per thousand cubic feet (Mcf) or per million British thermal units (MMBtu), quality specs and how much capacity the producer can count on.
Many deals include an acreage dedication, where the producer commits all gas from a defined area to that system for years. In return the midstream company agrees to build lines and stations to reach new wells. Regulation of gathering lines is different from interstate transmission, and safety and siting rules vary by state and by line type, so anyone planning to build or tap one should check with the state regulator.
Why Does a Gathering System Matter for On-Site Power?
Because it is often the closest gas to a remote site. A data center module, a pump station or a bitcoin mining operation in the oil patch may be miles from any transmission pipeline but right next to a gathering line. Tapping in there can be faster and cheaper than building a long lateral to a big interstate line.
There are trade-offs. Gas upstream of a processing plant can be rich, wet and variable, which engines do not love. Understanding wellhead gas quality is the first step before you plan to burn it. Pressure can swing as wells come on and decline. And the gathering company may only offer interruptible service, because its first duty is moving producers' gas to market.
Gathering capacity also explains why some areas flare. If a new well is completed before the gathering line reaches it, or if a downstream plant is full, that gas has to go somewhere. Flaring, or burning it on site, is often the short-term answer.
The Gas Gathering System, From Pad to Pipeline
A gas gathering system is the plumbing between the well and the market: flowlines, separators, gathering pipe, compressors and processing plants that turn raw field gas into pipeline gas. It is less famous than the big transmission lines, but nothing moves without it.
Scouting a site for on-site generation? Map the gathering systems before you map the interstates. Ask who owns them, what pressure and gas quality they carry, and whether capacity is firm or interruptible. In the Mid-Continent, most of those answers trace back to Oklahoma natural gas production and the plays feeding each system. One call to the company that owns the nearest gathering line can save you a month of guessing from maps.
